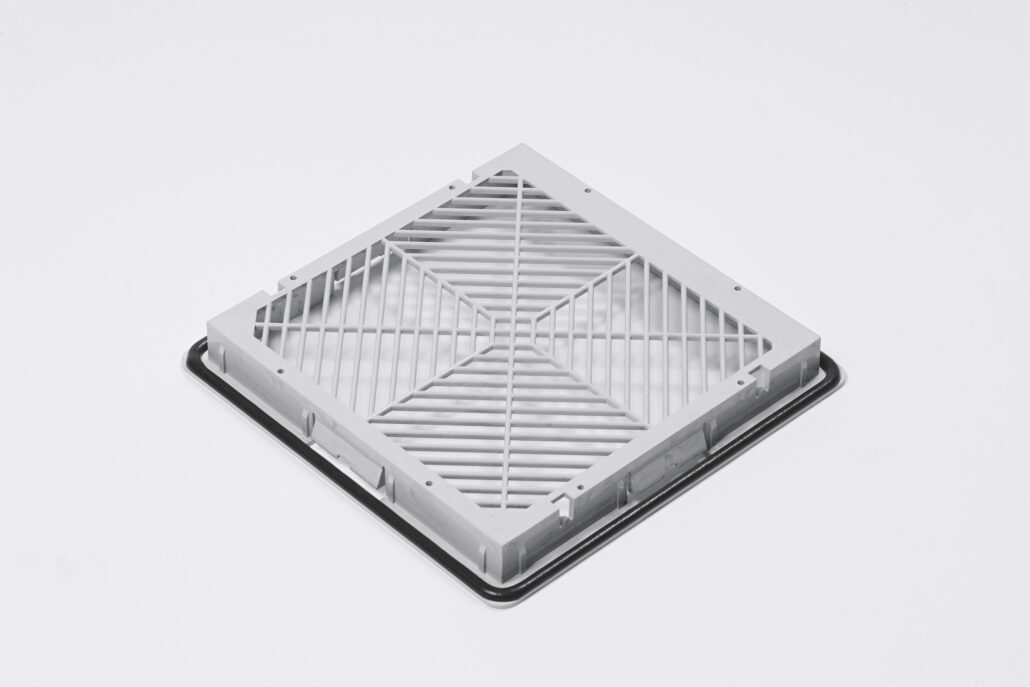

Dosing system of polyurethane gasket

Project goals:

  • Design and manufacture of an automatic dosing system of gasket on thermoplastic components
  • Flexible solution, ideal for different version of product
  • Layout optimization with a single loading / off-loading station

Find out how Tecnodinamica stepped into this project:

Main features

  • System manageable by no.1 dedicated operator
  • Powered silicon belt conveyor on two levels for loading / off-loading
  • Workpiece positioning system with interchangeable templates
  • Automatic control for the correct positioning of components

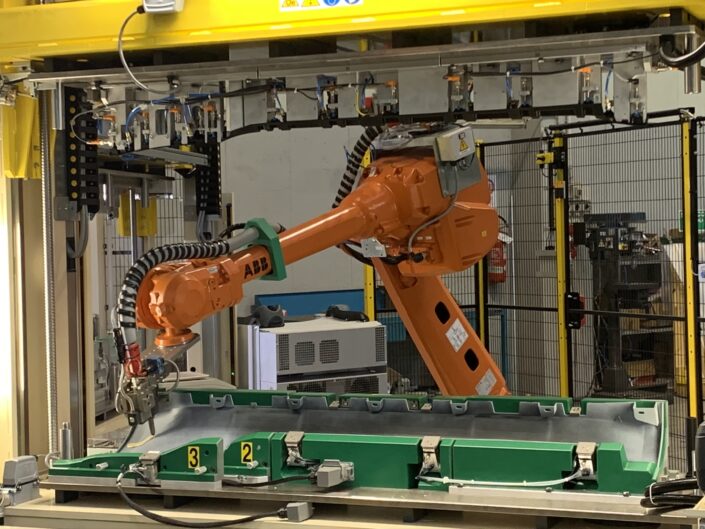

  • Automatic gasket dosing system
  • Powered accumulation belt conveyor for drying of components
  • Electrical control panel with touch screen
  • Customized HMI interface
  • Real-time process controls
  • Remote assistance and process diagnostic
  • Industry 4.0 requirements and integration with enterprise management systems

Indicative overall dimensions

  • 9.000 x 5.000 mm (safety fences included)

Tecnodinamica activity

  • Mechanical design
  • Electrical design
  • Software design
  • Mechanical assembly
  • Wiring on board machine and electrical control panel
  • In-house start-up and test
  • Start-up and training at the production site
