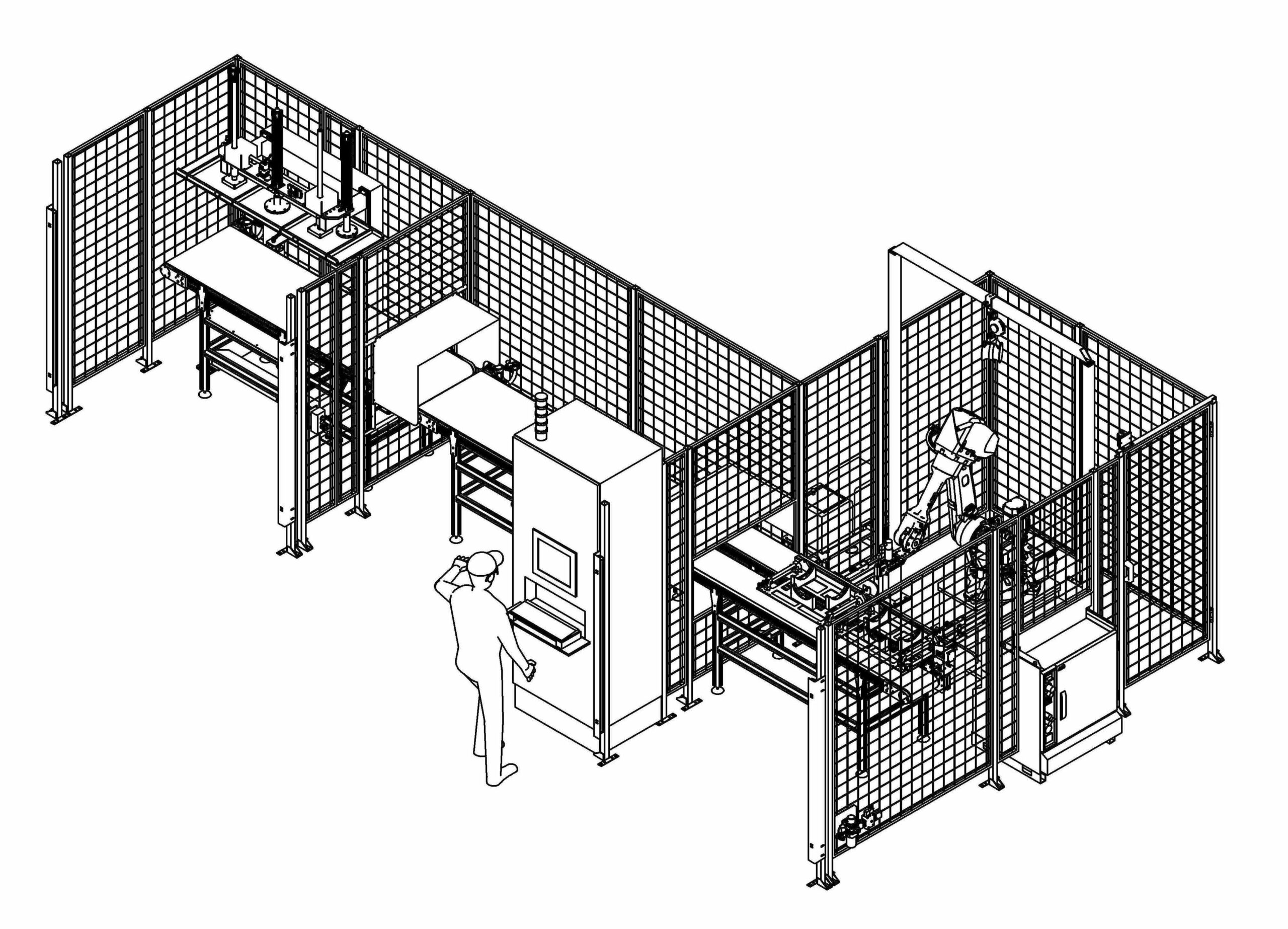

Robotized system for gluing of expanded materials

Project goals:

  • Automation of a manual assembly process through the design and manufacture of customize system
  • Automatic dosing of hot-melt glue on expanded material components
  • Flexible solution, ideal for frequent production changeovers

Find out how Tecnodinamica stepped into this project:

Main features

  • System controlled by no.1 dedicated operator
  • Powered loading roller conveyors with interchangeable templates for components positioning
  • Anthropomorphic robot with dosing head for glue application
  • Hot-melt glue dispensing system
  • Pneumatic presses with vertical closing for the matching of the glued parts
  • Electrical control panel with touch screen
  • Customized HMI interface
  • Customizable operating cycle from user interface
  • Real-time process controls
  • Remote assistance and process diagnostic
  • Industry 4.0 requirements and integration with enterprise management systems

Indicative overall dimensions

  • 8.000 x 6.000 mm (safety fences included)

Tecnodinamica activity

  • Mechanical design
  • Electrical design
  • Software design and robot programming
  • Mechanical assembly
  • Wiring on board machine and electrical control panel
  • In-house start-up and test
  • Start-up and training at the production site
